IS 14605 / ISO 8026
Mini Sprinkler Systems
Mini sprinklers and micro sprayers to IS 14605 and ISO 8026 — even coverage at pressures a modest pump can hold, for the crops where drip is too targeted and flood is too wasteful.
Micro-irrigation in the field
Overview
Runs on modest pump heads — typically 1 to 3 kg/cm².
The correct standard for micro and mini sprinklers, aligned to ISO 8026.
Shares HDPE mains with drip zones.
Even coverage, low pressure.
Not every crop wants water at a point. Nurseries, leafy vegetables, germinating beds and close-spaced horticulture all do better with an even wetted area, and mini sprinklers deliver that at pressures a modest pump can hold.
A standards note worth getting right: the micro and mini sprinkler standard is IS 14605, aligned to ISO 8026. IS 12232 is the standard for rotating impact sprinklers used in overhead sprinkler irrigation — a different product. Suppliers citing IS 12232 for a mini sprinkler have the wrong standard on their datasheet.
Technical data
Specification.
Built to the purchaser's schedule. Fields marked On enquiry are issued against a specific enquiry. Delivery as per the client's requirement, confirmed with the quotation. Open the rows below for construction details, reference tables and fittings.
General
| Parameter | Specification |
|---|---|
| Product | Mini sprinkler and micro sprayer |
| Standard | IS 14605, aligned to ISO 8026 |
| Discharge range | Typically 16 to 180 litres per hour at 1 kg/cm² — by nozzle |
| Recommended operating pressure | 1 to 3 kg/cm² |
| Inlet connection | Threaded or micro-barb — specify |
| Coverage | Full circle and part circle patterns |
| Recommended spacing | 1.2 m to 4.4 m depending on nozzle and pressure |
| Filtration required | 100 micron |
| Nozzle identification | Colour coded by discharge rate |
Performance data
| Parameter | Specification |
|---|---|
| Nozzle × pressure × discharge matrix | On enquiry — full matrix issued on enquiry |
| Wetted diameter by nozzle and pressure | On enquiry |
| Distribution uniformity | Tested per IS 14605 |
| Trajectory height | Per IS 14605 test method |
Reference data — what the standards requireTables from the Indian Standard, for checking any quotation against it
Choosing between drip and sprinkler
| Consideration | Drip lateral | Mini sprinkler |
|---|---|---|
| Water delivery | To a point at the root zone | Even wetted area across the zone |
| Best suited to | Row crops, orchards, wide spacing | Nurseries, leafy and close-spaced crops |
| Operating pressure | About 1 bar | 1 to 3 kg/cm² |
| Filtration | 75–100 micron (160–200 mesh) | 100 micron |
| Evaporation loss | Lowest | Higher than drip, far lower than flood |
| Germination and establishment | Poor — wets only a point | Good — wets the whole bed |
| Frost and cooling use | Not suitable | Suitable |
Many fields want both, zoned off the same HDPE main. That is the normal design, not a compromise.
Compliance
Standards & testing.
Routine tests are performed on every unit before dispatch. Type tests are certified from CPRI, ERDA or NABL-accredited laboratories on request.
| Standard | Scope |
|---|---|
| IS 14605 | Irrigation equipment — micro sprayers, aligned to ISO 8026 |
| ISO 8026 | Agricultural irrigation equipment — sprayers, general requirements and test methods |
| IS 12232 (Part 1) | Rotating sprinklers — a different product; not the micro sprinkler standard |
| IS 14151 | Polyethylene pipes for sprinkler irrigation systems |

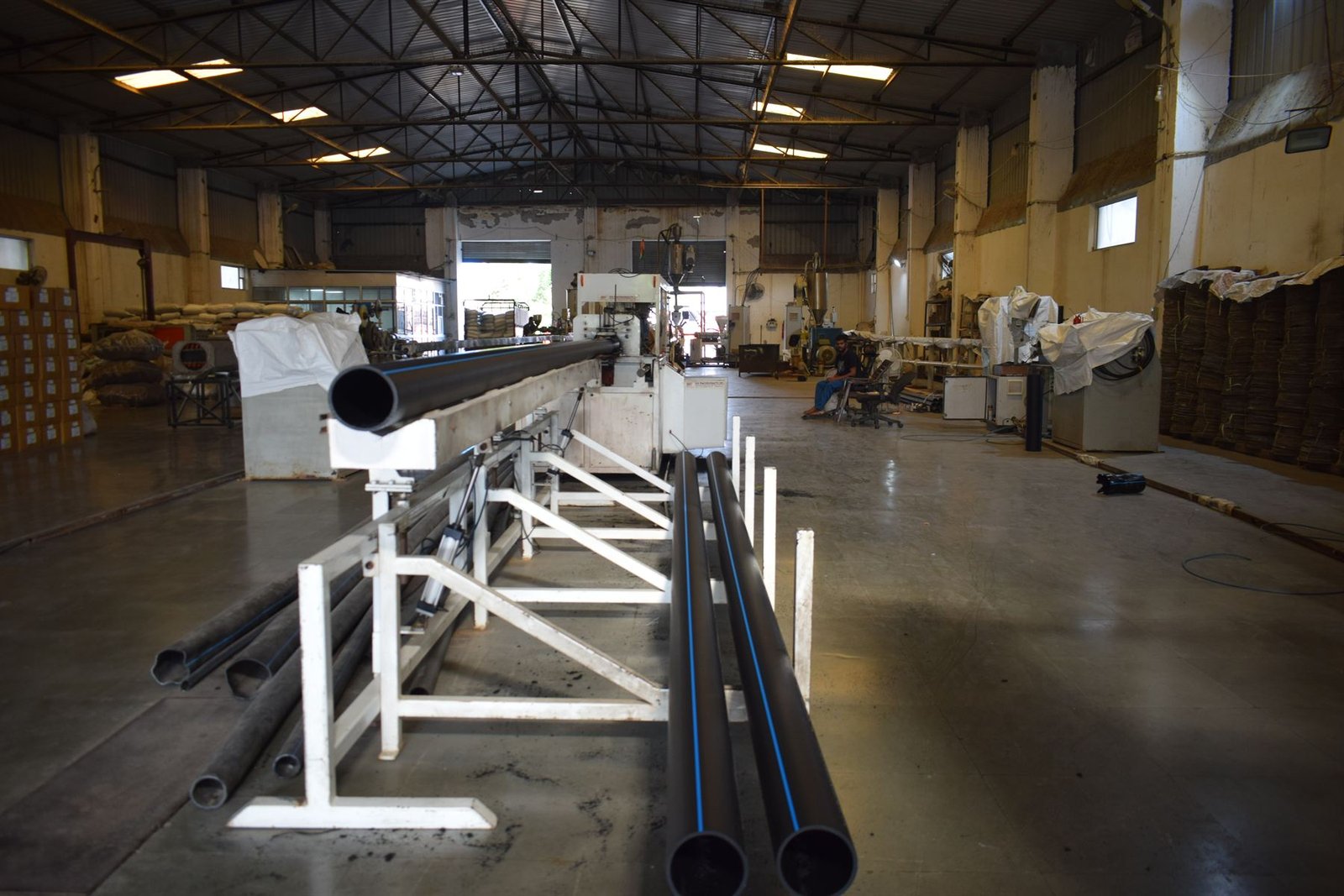

Inside the works
In service.
Sprinkler zones running alongside drip on the same field network.
Walk the whole works
Applications
Where it goes to work.
Nurseries
Seedling and nursery bed irrigation.
Leafy crops
Close-spaced vegetable production.
Under canopy
Supplementary irrigation in plantations.
Turf
Lawn, park and landscape watering.
Questions
Frequently asked.
Which standard applies to mini sprinklers?
What pressure do mini sprinklers need?
Can I run drip and sprinkler off the same system?
Often supplied together
Ask about sprinkler systems.
Tell us the crop, spacing and water source and we will help size the system.
